Facilities
CNC: Vertical Machining Center
Model/Make: AGNI BMV 45, BFW
Fanuc 0i MD Controller
Traverse: 600mm x 450mm x 500mm
spindle Power: 7.5/11.5 kW
Spindle Speed: 8000rpm
Positioning Accuracy: ±5 µm
Repeatability: ±3 µm
20 pocket Automatic tool changer
Renishaw touch probe

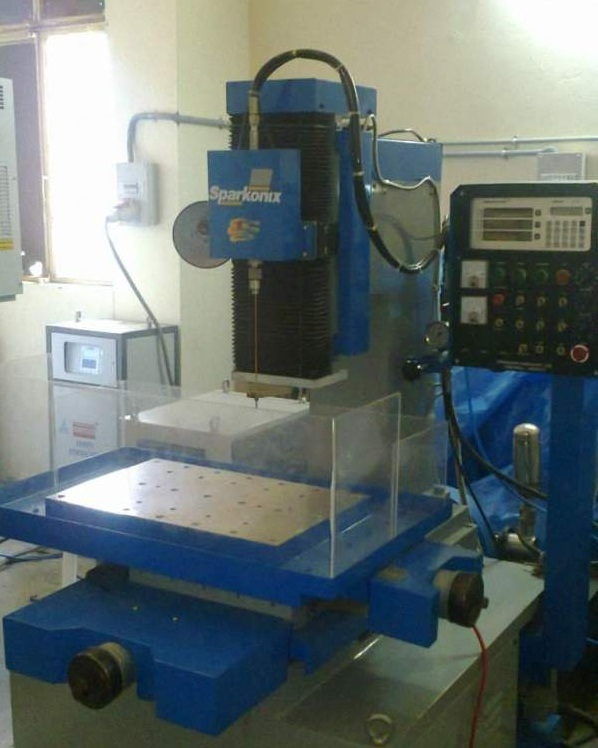

EDM: Hole Drilling
Model/Make: Speed II, Sparkonix
EDM Drill machine suitable for making micro holes of diameter from 0.3 mm to 10.0 mm in all metals.
Useful for drilling start holes for Wire Cut EDM, creating Gas escape holes and also for drilling in Super Alloys and Tungsten Carbide Dies
Maximum job weight: 350kg
Maximum job height: 310mm
Maximum drilling depth: 300mm

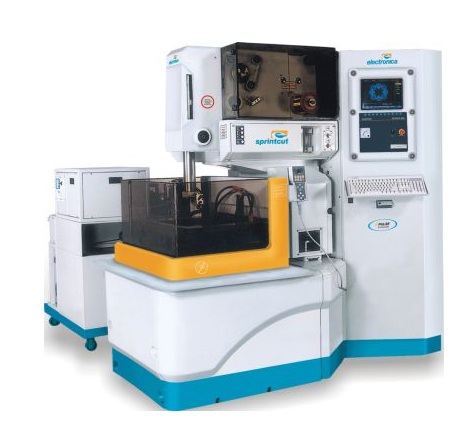

EDM: Wire-Cut
Model/Make: Sprintcut, Electronica
Machining of metal with the help of metal wire in conjunction with deionised water
Useful of machining complex and precision components made out of hard conductive materials
Controlled axes: X,Y,u,v simultaneous
Main table traverse (X,Y): 300 mm x 400 mm
Auxiliary table traverse (u,v): 80 mm x 80 mm
Maximum work piece height: 200 mm
Maximum taper angle: +/- 300 /50 mm
Wire electrode diameters: 0.15, 0.20, 0.25 mm

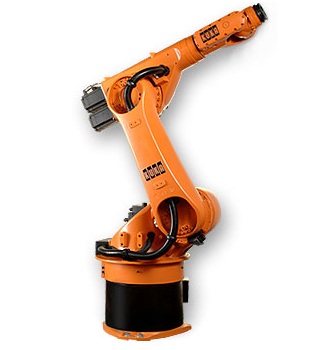

Robotic Welding Station
Model/Make: KR 30-3 Robot, Kuka
Number of axes: 6
Max. reach: 2033 mm
Payload: 30 kg
Supplementary payload: 35 kg
Repeatability: ±0,06 mm
Controller: KR C2
Teach Pendant: KCP

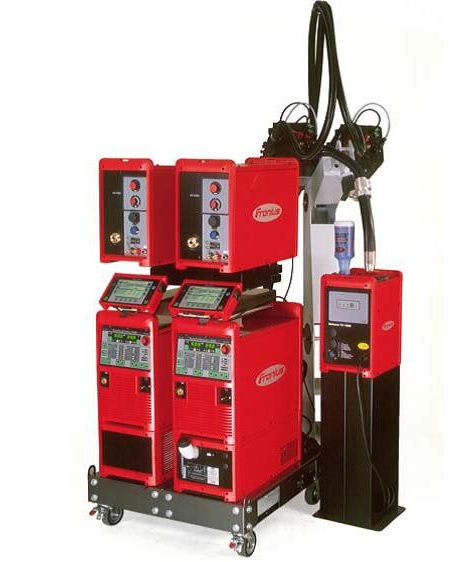

Twin Wire Welding
Model/Make: TimeTwin Digital, Fronius
In TimeTwin, controllable digital power sources work totally independently - with two separate filler wires - in just one gas nozzle and in a common weld pool.
Facilitates MIG, MAG, Pulsed welding with robotic operation in single and tandem wire mode.
Supports other processes like TIG and SMAW in manual mode
Materials: Steel, SS and Aluminum and their alloys Deposition rate up to 30 kg/h
Welding speed up to 6 m/min

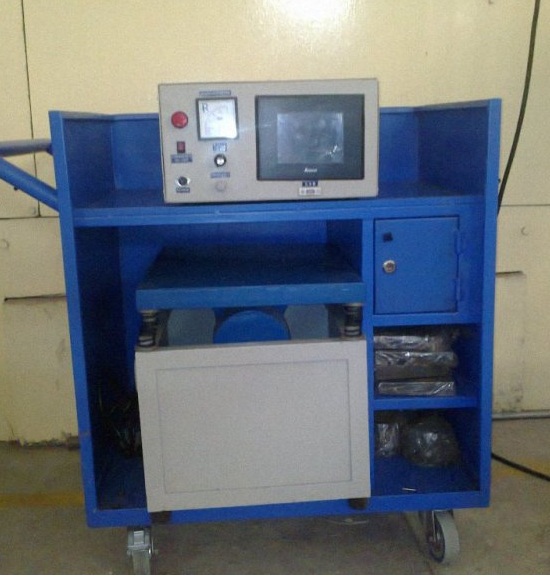

Vibratory Stress Relieving Equipment
Model/Make: STREL-Q, Sahyog Enterprises
Relieves residual stresses developed in the welded or cast structures through vibratory treatment
Maximum weight allowed: 300 kg
Output frequency: 7.5 Hz to 100 Hz
Equipped with chart recorder, vibrating table, isolation rubbers
